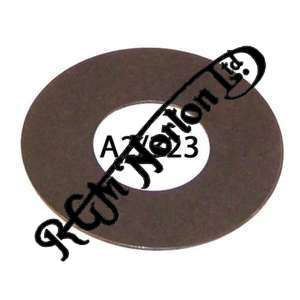

MAINSHAFT BEARING PACKING WASHER

A STEEL SHIM OR WASHER USED BEHIND THE MAINSHAFT BEARING IN THE INNER GEARBOX COVER.  THE SHIM IS PLACED BENEATH THE BEARING BEFORE THE BEARING IS FITTED ON DOLLS HEAD, UPRIGHT AND LAYDOWN GEARBOXES.  IT IS NOT USED ON AMC BOXES

OUTSIDE DIAMETER: 1 7/16" (36.3MM)
INSIDE DIAMETER: 5/8" (16MM)
THICKNESS: .020" (.5MM)
