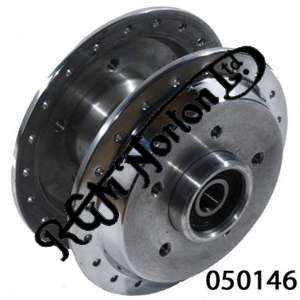

COMMANDO DOUBLE DISC FRONT HUB, TAKES STD DISCS OR OUR 12" DISC, COMPLETE WITH B

COMMANDO DOUBLE DISC FRONT HUB, TAKES STD DISCS OR OUR 12" DISC, COMPLETE WITH B

Part No
050146
RGM Genuine

COMMANDO DOUBLE DISC FRONT HUB, TAKES STD DISCS OR OUR 12" DISC, COMPLETE WITH B

WE HAVE IMPROVED OUR DOUBLE DISC FRONT HUB BY CHANGING OVER TO BILLET ALLOY.  THE OLD ONE LIKE THE NORVIL WAS THREE PIECE.  THIS POLISHED ALLOY HUB TAKES THE STANDARD COMMANDO DISC OR OUR 12" DISCS AND USES THE STANDARD SPINDLE.  THE TWO OUTER SPACERS ARE STANDARD NORTON DISC SIDE BUT MK3 SPEC 'PINCH BOLT' SIDE.  IT MAY BE NECESSARY TO SHORTEN THE DISC SIDE SLIGHTLY DEPENDING ON SLIDERS AND CALIPERS USED.  I WOULD RECOMMEND ASSEMBLING THE FORKS AND POSITIONING THE HUB WITH DISCS AND CALIPERS FITTED PRIOR TO BUILDING THE WHEEL AS THIS WILL ENSURE THE RIM CAN BE PLACED DEAD CENTRAL BETWEEN THE LEGS.  THE HUB IS SUPPLIED ASSEMBLED WITH NEW BEARINGS ETC BUT IT IS NOT
SUPPLIED WITH DUST COVERS OR DISC FITTING HARDWARE AS YOU MAY OR MAY NOT HAVE THESE PARTS.  TO FIT THE DISC(S) YOU WILL REQUIRE EITHER THE STANDARD STUDS, 061960 AND NUTS, 140302S OR SC95 FOR DOMED NUTS OR OUR STAINLESS BOLT AND WASHER SET, SC61 (ONE SET PER DISC), THESE ARE ALL PARTS WHICH INTERCHANGE WITH THE STANDARD DISC.  ADDITIONALLY YOU WILL NEED THE STANDARD COMMANDO DISC SIDE SPACE/DUST COVER, 062448S AND A MK3 PINCH BOLT SIDE SPACER/DUST COVER, 066034.  YOU DO NOT NEED THE THREADED LOCK RING AS THE BEARING IS LOCATED WITH A CIRCLIP.

PLEASE SEE PART NUMBER 050523 FOR SPOKE SET

PLEASE NOTE: THIS IS A BUILT TO ORDER PRODUCT (DONE HERE) OCCASIONALLY THERE MAY BE A SLIGHT DELAY.

Telephone orders

Orderline: +44 (0)1946 841517

Monday to Friday 8am - 4:30pm Closed Weekends

Price in GBP
£159.00 excl. VAT
  • More than 10 in stock.
