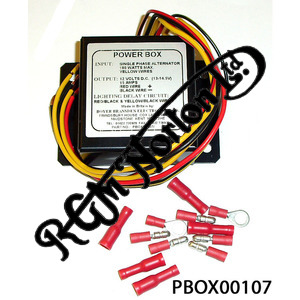

BOYER POWERBOX SINGLE PHASE, REPLACES ZENER DIODE AND RECTIFIER

SINGLE PHASE POWER BOX WITH LIGHTING DELAY CIRCUIT - THE LIGHTS ARE ONLY SUPPLIED WHEN 10 VOLTS IS EXCEEDED.

INPUT: ANY PERMANENT MAGNET ALTERNATOR SINGLE PHASE TWO OR THREE WIRE, UP TO 180 WATTS
OUTPUT: 13/14 VOLTS DC (CHARGING 12 VOLTS)
MOUNTING: 4 X 6MM HOLES AT 45MM X 75MM CENTRES
SIZE: 66MM LONG X 62MM WIDE X 35MM HIGH, 92MM X 66MM OVER MOUNTING FLANGE
WEIGHT: 200G

MOUNT THE UNIT IN FREE AIR.  THIS CAN BE IN A BATTERY BOX BUT SOME AIR FOR COOLING IS REQUIRED.
USE RUBBER VIBRATION MOUNTINGS FOR SEVERE CONDITIONS.
A BATTERY CAN BE USED WITH THIS UNIT BUT THE LIGHTING DELAY CIRCUIT WILL NOT FUNCTION

A 15 AMP FUSE MUST BE FITTED IN THE BATTERY CIRCUIT AND NEVER CONNECT THE BATTERY THE WRONG WAY ROUND
