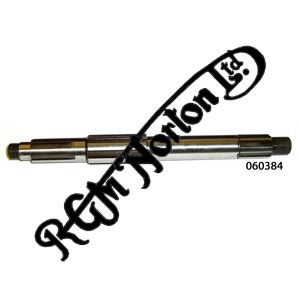

MAINSHAFT COMMANDO GEARBOX, 9 7/16" LONG

MAINSHAFT COMMANDO GEARBOX, 9 7/16" LONG

Part No
060384
RGM Genuine

MAINSHAFT COMMANDO GEARBOX, 9 7/16" LONG

UK MADE.  TOP QUALITY MATERIAL

THIS SHAFT IS SUITABLE FOR ALL NORTON COMMANDO OR IN FACT ANY AMC GEARBOX THAT USES THE COMMANDO TYPE CLUTCH.  THE MAIN DIFFERENCE ON THIS SHAFT COMPARED TO OTHER AMC SHAFTS IS THAT THE COMMANDO ALONE LOCATED THE CLUTCH WITH A SMALL CIRCLIP AND SPACER HENCE THE GROOVE VISIBLE AT THE END OF CLUTCH LOCATION SPLINE.  ALL THE PRE COMMANDO CLUTCHES HAD A CLOSED PORTION AT THE END OF THE THREE LEGGED SPIDER AND THE CLUTCH WAS LOCATED BY THIS CLOSED PORTION BUTTING UP TO THE END OF THE SPLINE. THIS DESIGN DID NOT HOLD THE CLUTCH PERPENDICULAR TO THE SHAFT, DID NOT ALLOW FOR ANY CHAIN ALIGNMENT AND ADJUSTMENT.  COMMANDO USES SHIMS AS REQUIRED AND THE LOCATION BOSS IN THE END OF THE SPIDER WOULD SLOWLY WEAR OUT ALLOWING THE CLUTCH TO MOVE EVER FURTHER UP THE SHAFT.  PRE AMC GEARBOX MAINSHAFTS CAN BE IDENTIFIED BY THE LACK OFF THE INNER END SCREW THREAD, THE PRE AMC SHAFT FLOATED THRUST BEING CONTROLLED BY THE SPLINED THRUST WASHER.

IF YOU ARE BUILDING AN AMC GEARBOX AND INTEND TO FIT ONE OF OUR COMMANDO (DIAPHRAGM) TYPE BELT DRIVES YOU SHOULD USE THIS SHAFT ALTHOUGH WE CAN SUPPLY THE COMMANDO TYPE CLUTCH CENTRE MODIFIED FOR THE PRE COMMANDO NON CIRCLED GROOVE SHAFT.

Telephone orders

Orderline: +44 (0)1946 841517

Monday to Friday 9am - 5pm

Price in GBP
£85.90 excl. VAT
  • More than 10 in stock.
